The STEMAT-JANSEN globe valve regulates the flow of a gaseous or liquid fluid. Its shutter moves linearly in the direction of flow at the sealing surfaces. The sealing towards the outside is obtained by a cable gland or by a bellows.

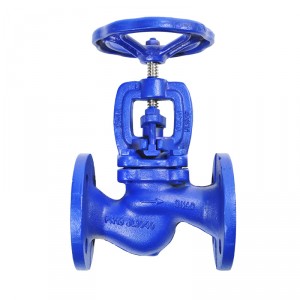

Straight globe valve – GG25 cast iron – stainless steel seat – Fig. 101/215 PN16
Material :
Cast iron
Type :
Straight form Internal fixed valve
Straight globe valve – GG25 cast iron – stainless steel seat – with controlling disc – Fig. 101/216 PN16
Material :
Cast iron
Type :
Straight form Internal fixed valve

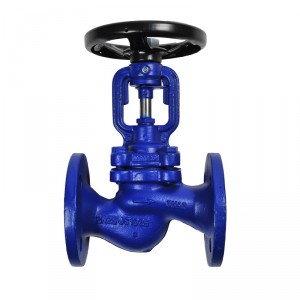

Straight globe valve – GG25 cast iron – with below – stainless steel seat – Fig. 102/220 PN16
Material :
Cast iron
Type :
Straight form Internal fixed valve With below

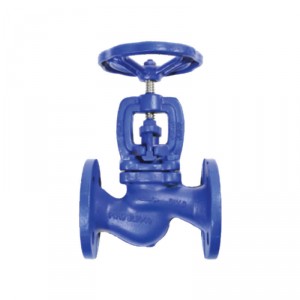

Straight globe valve – straight form – GG25 cast iron – fixed disc – bronze seat – Fig. 103/210 PN16
Material :
Cast iron
Type :
Straight form Internal fixed valve

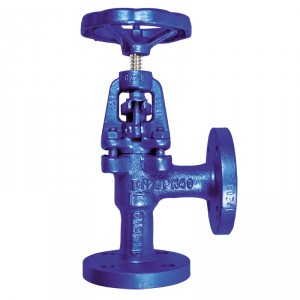

Angle globe valve – GG25 cast iron – fixed disc – bronze seat – Fig. 104/211 PN16
Material :
Cast iron
Type :
Angle form Internal fixed valve
Straight globe valve – GG25 cast iron – with internal lift check valve – Fig. 105/212 PN16
Material :
Cast iron
Type :
Straight form Internal lift check valve

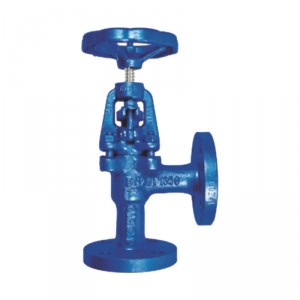

Angle globe valve – GG25 cast iron – with internal lift chek valve – Fig. 106/213 PN16
Material :
Cast iron
Type :
Angle form Internal lift check valve

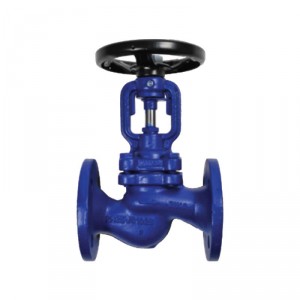

Straight globe valve – GGG40 ductile iron – with below – stainless steel seat – Fig. 107/219 PN16
Material :
Nodular cast iron
Type :
Internal fixed valve With below Straight form
Straight globe valve – GGG40 ductile iron – with below – stainless steel seat – Fig. 107/219 PN25
Material :
Nodular cast iron
Type :
With below Straight form Internal fixed valve
Straight globe valve – cast steel – stainless steel seat – Fig. 121/225 PN40
Material :
Cast steel
Type :
Straight form Internal fixed valve
Straight globe valve with below – cast steel – stainless steel seat – Fig. 122/229 PN40
Material :
Cast steel
Type :
Straight form Internal fixed valve With below

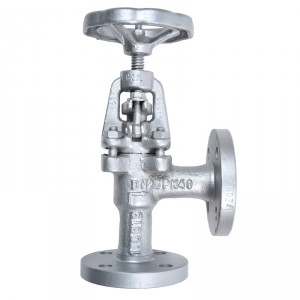

Angle globe valve – cast steel – stainless steel seat – Fig. 124/221 PN40
Material :
Cast steel
Type :
Angle form Internal fixed valve

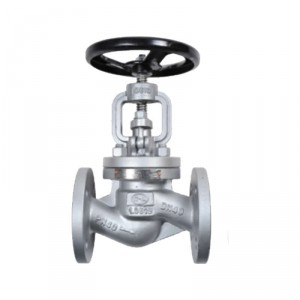

Straight globe valve – cast steel – with internal lift check valve – stainless steel seat – Fig. 125/222 PN40
Material :
Cast steel
Type :
Straight form Internal lift check valve

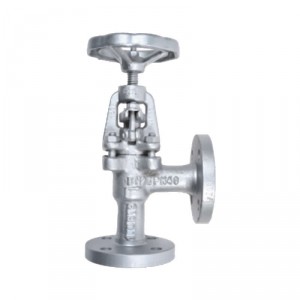

Angle globe valve – cast steel – with internal lift check valve – stainless steel seat – Fig. 126/223 PN40
Material :
Cast steel
Type :
Angle form Internal lift check valve

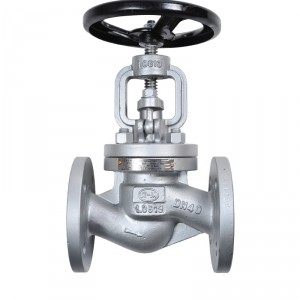

Straight globe valve – forged steel – stainless steel seat – Fig. 128/233 PN63
Material :
Forged steel
Type :
Straight form Internal fixed valve
Straight globe valve – forged steel – stainless steel seat – Fig. 128/233 PN100
Material :
Forged steel
Type :
Internal fixed valve Straight form

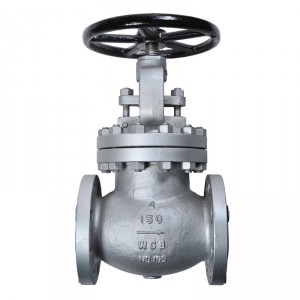

ANSI straight globe valve – cast steel – Seat Trim 8 – Fig. 130/238 PN20 ASA 150lbs
Material :
Cast steel
Type :
Straight form Internal fixed valve ASA standard
ANSI straight globe valve – cast steel – seat Trim 8 – Fig. 131/239 PN50 ASA 300lbs
Material :
Cast steel
Type :
Straight form Internal fixed valve ASA standard

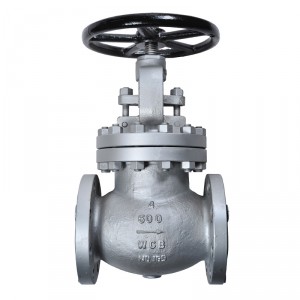

ANSI straight globe valve – cast steel – seat Trim 8 – Fig. 132/240 PN100 ASA 600lbs
Material :
Cast steel
Type :
Straight form Internal fixed valve ASA standard

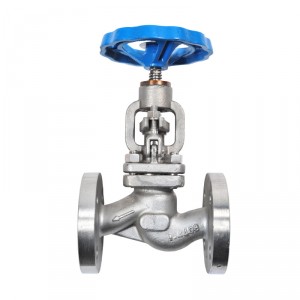

Straight globe valve – A316 stainless steel – Fig. 201/235 PN16
Material :
Stainless steel
Type :
Straight form Internal fixed valve
